Step 1: Load data and run dimensionality reduction
GASTON requires:
N x G counts matrix
N x 2 spatial coordinate matrix,
list of names for each gene
where N=number of spatial locations and G=number of genes.
There are two options for pre-processing: (1) using GLM-PCA or (2) using top PCs of Pearson residuals.
For this dataset, we previously extracted the ``striatum” region from a much larger MERFISH adata object
folder='striatum_1058/'
counts_mat=np.load(folder+'counts_mat.npy')
coords_mat=np.load(folder+'coords_mat.npy')
gene_labels=np.load(folder+'gene_names.npy',allow_pickle=True)
Option 1: GLMPCA
# GLM-PCA parameters
num_dims=20
penalty=10 # may need to increase if this is too small
# CHANGE THESE PARAMETERS TO REDUCE RUNTIME
num_iters=30
eps=1e-4
num_genes=30000 # smaller value means using fewer genes
##################################################################
counts_mat_glmpca=counts_mat[:,np.argsort(np.sum(counts_mat, axis=0))[-num_genes:]]
glmpca_res=glmpca.glmpca(counts_mat_glmpca.T, num_dims, fam="poi", penalty=penalty, verbose=True,
ctl = {"maxIter":num_iters, "eps":eps, "optimizeTheta":True})
A = glmpca_res['factors'] # should be of size N x num_dims, where each column is a PC
np.save('striatum_1058/glmpca_mat.npy', A)

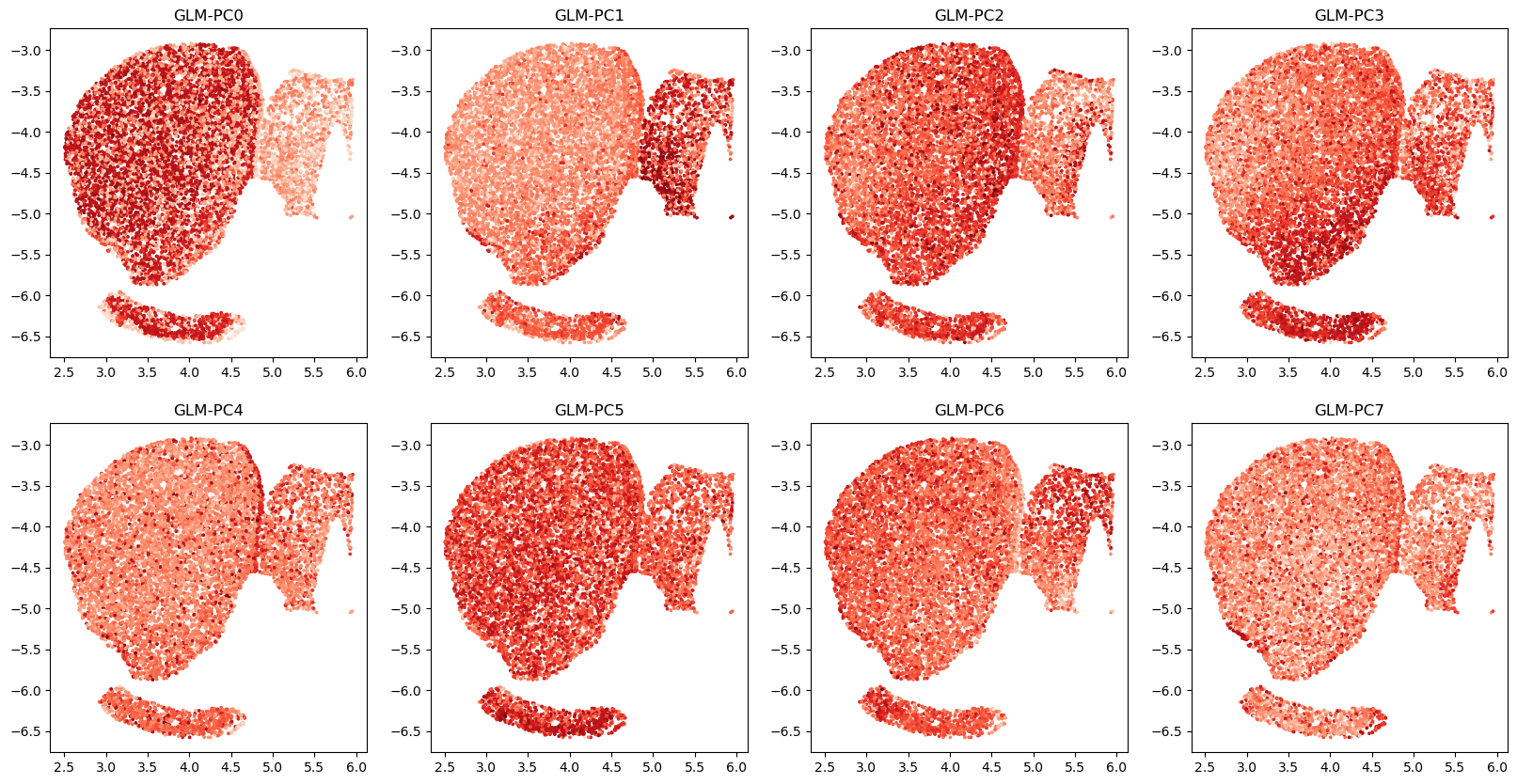

# visualize top GLM-PCs
# here we use pre-computed GLM-PCs
# A=np.load('striatum_1058/glmpca_mat.npy')
R=2
C=4
fig,axs=plt.subplots(R,C,figsize=(20,10))
for r in range(R):
for c in range(C):
i=r*C+c
axs[r,c].scatter(coords_mat[:,0], coords_mat[:,1], c=A[:,i],cmap='Reds',s=3)
axs[r,c].set_title(f'GLM-PC{i}')
Option 2: top PCs of analytic Pearson residuals
Faster, but lower quality
num_dims=8 # 2 * number of clusters
clip=0.01 # have to clip values to be very small!
A = dim_reduction.get_top_pearson_residuals(num_dims,counts_mat,coords_mat,gene_labels,clip=clip)
/n/fs/ragr-data/users/uchitra/miniconda3/envs/gaston-mix/lib/python3.12/site-packages/anndata/_core/aligned_df.py:68: ImplicitModificationWarning: Transforming to str index.
warnings.warn("Transforming to str index.", ImplicitModificationWarning)
/n/fs/ragr-research/projects/GASTON-Mix/src/gastonmix/dim_reduction.py:15: ImplicitModificationWarning: Setting element `.layers['raw']` of view, initializing view as actual.
adata.layers["raw"] = adata.X.copy()

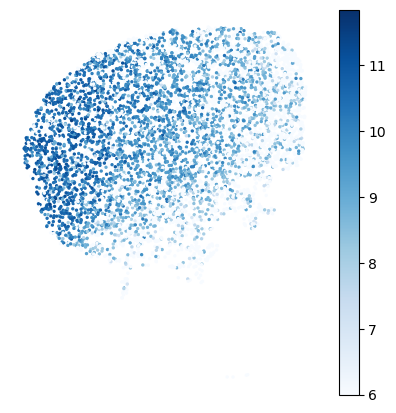

# visualize top GLM-PCs
R=2
C=4
fig,axs=plt.subplots(R,C,figsize=(20,10))
for r in range(R):
for c in range(C):
i=r*C+c

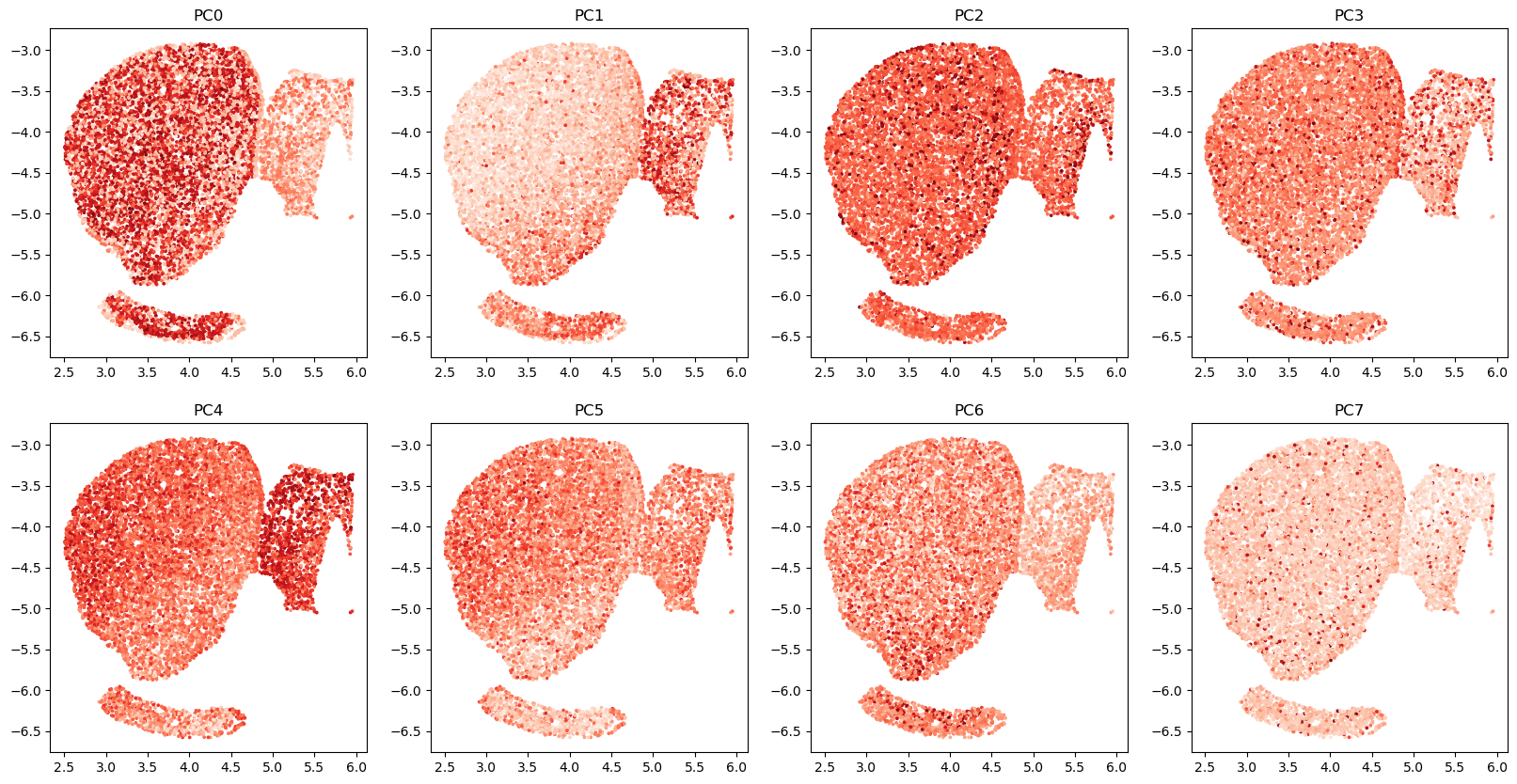

axs[r,c].scatter(coords_mat[:,0], coords_mat[:,1], c=A[:,i],cmap='Reds',s=3)
axs[r,c].set_title(f'PC{i}')
Step 1.5 (optional): get cluster labels to initialize network
Option 1: CellCharter
Run CellCharter (Varrone et al, Nat Genet 2024). Unfortunately there are some dependency conflicts right now with squidpy so we currently do not have the CellCharter code here. You can follow their tutorial https://cellcharter.readthedocs.io/en/latest/notebooks/cosmx_human_nsclc.html
We plot their clusters below
cc_labels=np.load('striatum_1058/cellcharter_labels_4.npy')
fig,ax=plt.subplots(figsize=(5,5))
colors=['olivedrab', 'C5', 'C3', 'C1']
for t in np.unique(cc_labels):

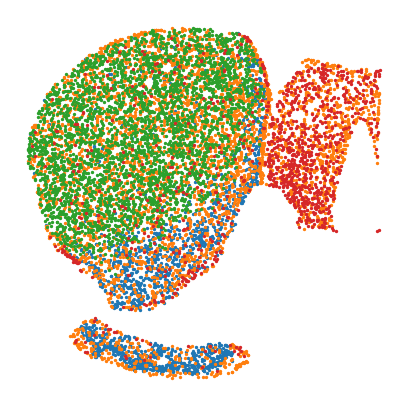

plt.scatter(coords_mat[cc_labels==t,0],coords_mat[cc_labels==t,1],s=2,label=t,c=colors[t])
plt.axis('off')
(np.float64(2.3320459284342805),
np.float64(6.131641157738978),
np.float64(-6.757893954014918),
np.float64(-2.73397252724503))
Option 2: k-means on GLM-PCs
n_clusters=4 # CHANGE to number of experts
A=np.load('striatum_1058/glmpca_mat.npy')
kmeans=KMeans(n_clusters=4)
kmeans.fit(A)
kmeans_labels=kmeans.labels_
fig,ax=plt.subplots(figsize=(5,5))
for t in np.unique(kmeans_labels):

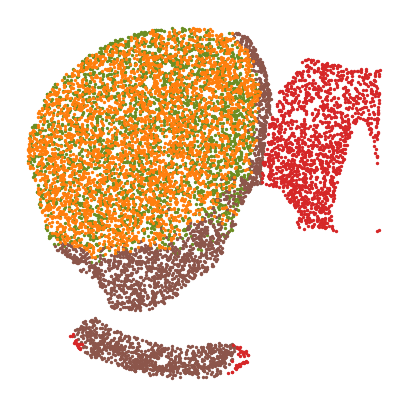

plt.scatter(coords_mat[kmeans_labels==t,0],coords_mat[kmeans_labels==t,1],s=2)
plt.axis('off')
(np.float64(2.3320459284342805),
np.float64(6.131641157738978),
np.float64(-6.757893954014918),
np.float64(-2.73397252724503))
Step 2: Train MoE model
We train the model by running a separate script.
# ARGUMENTS FOR MODEL
# random seed, device
seed = 1
device='cuda'
# folders and files
dataset = "striatum_1058" # folder containing data files
folder = "striatum_1058_MoE_output" # folder to save output
coords_file="striatum_1058/coords_mat.npy" # file containing coords for NN
expression_file="striatum_1058/glmpca_mat.npy" # file containing output (eg GLM-PCs) for NN
manual_init = "striatum_1058/cellcharter_labels_4.npy" # file containing initialization for gating network (optional)
# Model params
num_epochs = 50000 #number of epochs to train MoE model for
checkpoint = 1000 # number of epochs to alternate between gating vs other networks
gating_arch = "20 20" # gating network architecture: here two hidden layers of size 20
pos_encoding_gating = "8 0.01" # positional encoding parameters for gating (positional encoding of length 8 with frequency 0.01)
spatial_arch = "20" # isodepth network architecture: one hidden layer of size 20
expression_arch = "" # 1-D expression function architecture: linear
# Set to True if you want to plot NN every checkpoint epochs
plot_intermediates = True
################################################################################################################
# Construct the command dynamically
if plot_intermediates:
plot_interm="--plot_interm"
else:
plot_interm=""
cmd = f"python src/gastonmix/run_moe_script.py -s {seed} -d {dataset} -f {folder} --manual_init {manual_init} --coords_file {coords_file} "
cmd += f"--expression_file {expression_file} --num_epochs {num_epochs} --checkpoint {checkpoint} --gating_arch {gating_arch} "
cmd += f"--spatial_arch {spatial_arch} --expression_arch {expression_arch} {plot_interm} --pos_encoding_gating {pos_encoding_gating} --device {device}"
# Run the command
import os
os.system(cmd)
device: cuda
num_experts not specified, loading from manual init
Manual initialization
0
500
1000
1500
2000
2500
3000
3500
4000
4500
5000
5500
6000
6500
7000
7500
8000
8500
9000
9500
10000
10500
11000
11500
12000
12500
13000
13500
14000
14500
15000
15500
16000
16500
17000
17500
18000
18500
19000
19500
self.enc_dim_g: 8, self.sigma_g: 0.01, self.include_orig_coords: False
self.enc_dim_i: None, self.sigma_i: None, self.include_orig_coords: False
epoch: 0
regularization loss: 0
total loss: 1.2754422426223755
epoch: 1000
regularization loss: 0
total loss: 0.9217402935028076
epoch: 2000
regularization loss: 0
total loss: 0.8945264220237732
epoch: 3000
regularization loss: 0
total loss: 0.8876634240150452
epoch: 4000
regularization loss: 0
total loss: 0.8857436776161194
epoch: 5000
regularization loss: 0
total loss: 0.8861120343208313
epoch: 6000
regularization loss: 0
total loss: 0.8849719762802124
epoch: 7000
regularization loss: 0
total loss: 0.8858664035797119
epoch: 8000
regularization loss: 0
total loss: 0.8860727548599243
epoch: 9000
regularization loss: 0
total loss: 0.8926064968109131
epoch: 10000
regularization loss: 0
total loss: 0.8888256549835205
epoch: 11000
regularization loss: 0
total loss: 0.8891069293022156
epoch: 12000
regularization loss: 0
total loss: 0.8877801299095154
epoch: 13000
regularization loss: 0
total loss: 0.8878253698348999
epoch: 14000
regularization loss: 0
total loss: 0.886960506439209
epoch: 15000
regularization loss: 0
total loss: 0.8917482495307922
epoch: 16000
regularization loss: 0
total loss: 0.8847724795341492
epoch: 17000
regularization loss: 0
total loss: 0.8801083564758301
epoch: 18000
regularization loss: 0
total loss: 0.8789215683937073
epoch: 19000
regularization loss: 0
total loss: 0.8776550889015198
epoch: 20000
regularization loss: 0
total loss: 0.877778947353363
epoch: 21000
regularization loss: 0
total loss: 0.8765336275100708
epoch: 22000
regularization loss: 0
total loss: 0.8766329288482666
epoch: 23000
regularization loss: 0
total loss: 0.8750077486038208
epoch: 24000
regularization loss: 0
total loss: 0.87507164478302
epoch: 25000
regularization loss: 0
total loss: 0.8747170567512512
epoch: 26000
regularization loss: 0
total loss: 0.8741536736488342
epoch: 27000
regularization loss: 0
total loss: 0.8744326233863831
epoch: 28000
regularization loss: 0
total loss: 0.8740978240966797
epoch: 29000
regularization loss: 0
total loss: 0.8734087347984314
epoch: 30000
regularization loss: 0
total loss: 0.8741721510887146
epoch: 31000
regularization loss: 0
total loss: 0.8740268349647522
epoch: 32000
regularization loss: 0
total loss: 0.8734427690505981
epoch: 33000
regularization loss: 0
total loss: 0.8728297352790833
epoch: 34000
regularization loss: 0
total loss: 0.8740405440330505
epoch: 35000
regularization loss: 0
total loss: 0.8742599487304688
epoch: 36000
regularization loss: 0
total loss: 0.8734407424926758
epoch: 37000
regularization loss: 0
total loss: 0.8751012086868286
epoch: 38000
regularization loss: 0
total loss: 0.872708797454834
epoch: 39000
regularization loss: 0
total loss: 0.8732824325561523
epoch: 40000
regularization loss: 0
total loss: 0.8735180497169495
epoch: 41000
regularization loss: 0
total loss: 0.873449444770813
epoch: 42000
regularization loss: 0
total loss: 0.8724245429039001
epoch: 43000
regularization loss: 0
total loss: 0.8726048469543457
epoch: 44000
regularization loss: 0
total loss: 0.872877836227417
epoch: 45000
regularization loss: 0
total loss: 0.8731625080108643
epoch: 46000
regularization loss: 0
total loss: 0.8730577230453491
epoch: 47000
regularization loss: 0
total loss: 0.8724976181983948
epoch: 48000
regularization loss: 0
total loss: 0.8729788064956665
epoch: 49000
regularization loss: 0
total loss: 0.8732352256774902
0
Step 3: Visualize output
Plot all isodepths
The isodepth values are not yet scaled, so they can take on arbitrary ranges
import plot_isodepths
# MODEL TO LOAD
seed=1
output_folder='striatum_1058_MoE_output/'
model='final_model.pt' # can replace with intermediate model if desired, eg model_epoch_10000.pt
# PLOTTING PARAMETERS
levels=3 # number of contours

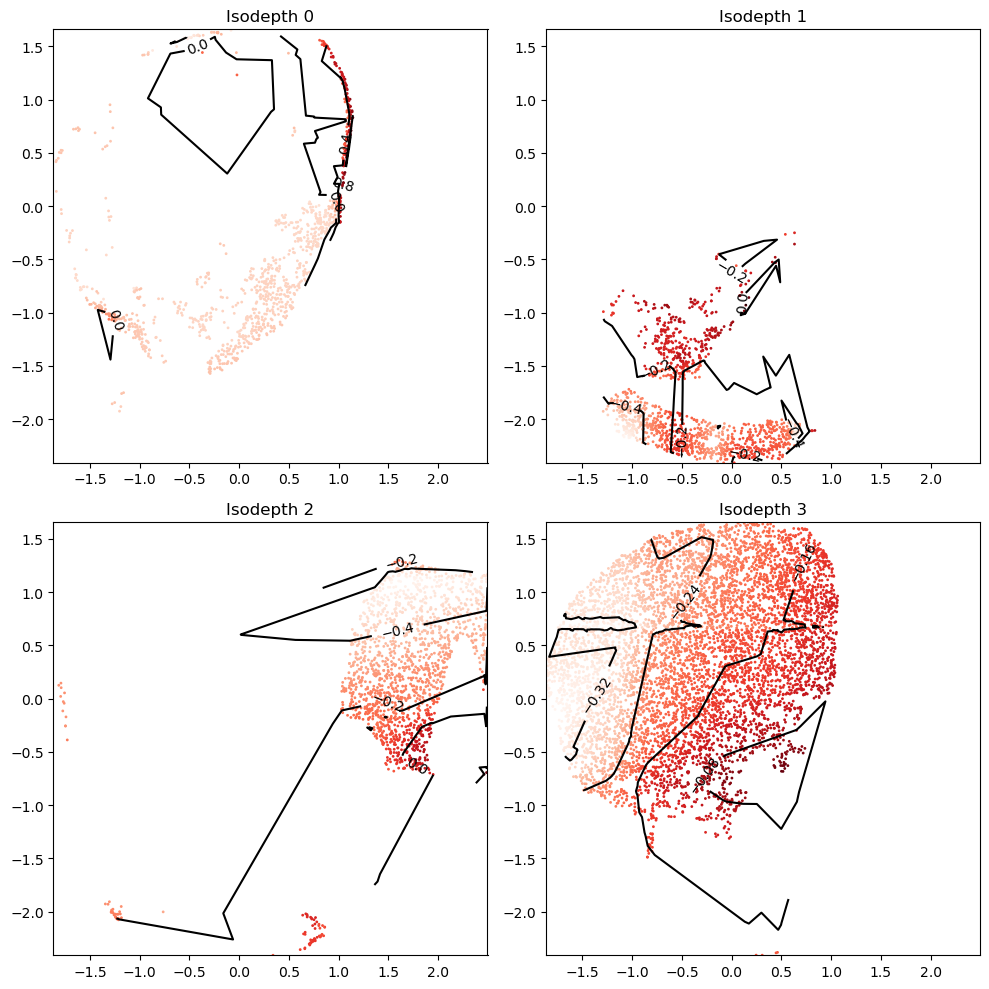

gastonmix_labels,_=plot_isodepths.plot_all_isodepths(output_folder,seed,model=model,outlier_threshold=10,levels=levels)
/n/fs/ragr-research/projects/GASTON-Mix/src/gastonmix/plot_isodepths.py:12: FutureWarning: You are using `torch.load` with `weights_only=False` (the current default value), which uses the default pickle module implicitly. It is possible to construct malicious pickle data which will execute arbitrary code during unpickling (See https://github.com/pytorch/pytorch/blob/main/SECURITY.md#untrusted-models for more details). In a future release, the default value for `weights_only` will be flipped to `True`. This limits the functions that could be executed during unpickling. Arbitrary objects will no longer be allowed to be loaded via this mode unless they are explicitly allowlisted by the user via `torch.serialization.add_safe_globals`. We recommend you start setting `weights_only=True` for any use case where you don't have full control of the loaded file. Please open an issue on GitHub for any issues related to this experimental feature.
moe_model=torch.load(output_folder + f'seed{seed}/' + model)
/n/fs/ragr-research/projects/GASTON-Mix/src/gastonmix/plot_isodepths.py:13: FutureWarning: You are using `torch.load` with `weights_only=False` (the current default value), which uses the default pickle module implicitly. It is possible to construct malicious pickle data which will execute arbitrary code during unpickling (See https://github.com/pytorch/pytorch/blob/main/SECURITY.md#untrusted-models for more details). In a future release, the default value for `weights_only` will be flipped to `True`. This limits the functions that could be executed during unpickling. Arbitrary objects will no longer be allowed to be loaded via this mode unless they are explicitly allowlisted by the user via `torch.serialization.add_safe_globals`. We recommend you start setting `weights_only=True` for any use case where you don't have full control of the loaded file. Please open an issue on GitHub for any issues related to this experimental feature.
Atorch=torch.load(output_folder + f'seed{seed}/' + 'Atorch.pt')
/n/fs/ragr-research/projects/GASTON-Mix/src/gastonmix/plot_isodepths.py:14: FutureWarning: You are using `torch.load` with `weights_only=False` (the current default value), which uses the default pickle module implicitly. It is possible to construct malicious pickle data which will execute arbitrary code during unpickling (See https://github.com/pytorch/pytorch/blob/main/SECURITY.md#untrusted-models for more details). In a future release, the default value for `weights_only` will be flipped to `True`. This limits the functions that could be executed during unpickling. Arbitrary objects will no longer be allowed to be loaded via this mode unless they are explicitly allowlisted by the user via `torch.serialization.add_safe_globals`. We recommend you start setting `weights_only=True` for any use case where you don't have full control of the loaded file. Please open an issue on GitHub for any issues related to this experimental feature.
Storch=torch.load(output_folder + f'seed{seed}/' + 'Storch.pt')
Plot topographic map of specific isodepth/expert
reload(plot_isodepths)
# which isodepth/expert to plot
expert_ind=3
# PLOTTING PARAMETERS
outlier_threshold=3 # sometimes experts contain far-away points; we omit displaying all points within outlier_threshold of the mean
levels=7 # number of contours
linewidth=2.5 # width of contours
density=0.6 # density of gradient arrows
arrowsize=2.5 # size of arrows
figsize=(4.5,5) # length, width of figure

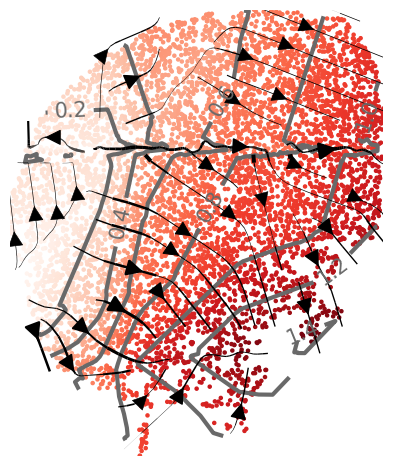

isodepth=plot_isodepths.plot_individual_isodepth(expert_ind,output_folder,seed,model='final_model.pt',
outlier_threshold=outlier_threshold,levels=levels,
linewidth=linewidth,density=density,arrowsize=arrowsize,figsize=figsize)
/n/fs/ragr-research/projects/GASTON-Mix/src/gastonmix/plot_isodepths.py:68: FutureWarning: You are using `torch.load` with `weights_only=False` (the current default value), which uses the default pickle module implicitly. It is possible to construct malicious pickle data which will execute arbitrary code during unpickling (See https://github.com/pytorch/pytorch/blob/main/SECURITY.md#untrusted-models for more details). In a future release, the default value for `weights_only` will be flipped to `True`. This limits the functions that could be executed during unpickling. Arbitrary objects will no longer be allowed to be loaded via this mode unless they are explicitly allowlisted by the user via `torch.serialization.add_safe_globals`. We recommend you start setting `weights_only=True` for any use case where you don't have full control of the loaded file. Please open an issue on GitHub for any issues related to this experimental feature.
Atorch=torch.load(output_folder + f'seed{seed}/' + 'Atorch.pt')
/n/fs/ragr-research/projects/GASTON-Mix/src/gastonmix/plot_isodepths.py:69: FutureWarning: You are using `torch.load` with `weights_only=False` (the current default value), which uses the default pickle module implicitly. It is possible to construct malicious pickle data which will execute arbitrary code during unpickling (See https://github.com/pytorch/pytorch/blob/main/SECURITY.md#untrusted-models for more details). In a future release, the default value for `weights_only` will be flipped to `True`. This limits the functions that could be executed during unpickling. Arbitrary objects will no longer be allowed to be loaded via this mode unless they are explicitly allowlisted by the user via `torch.serialization.add_safe_globals`. We recommend you start setting `weights_only=True` for any use case where you don't have full control of the loaded file. Please open an issue on GitHub for any issues related to this experimental feature.
Storch=torch.load(output_folder + f'seed{seed}/' + 'Storch.pt')
/n/fs/ragr-research/projects/GASTON-Mix/src/gastonmix/plot_isodepths.py:70: FutureWarning: You are using `torch.load` with `weights_only=False` (the current default value), which uses the default pickle module implicitly. It is possible to construct malicious pickle data which will execute arbitrary code during unpickling (See https://github.com/pytorch/pytorch/blob/main/SECURITY.md#untrusted-models for more details). In a future release, the default value for `weights_only` will be flipped to `True`. This limits the functions that could be executed during unpickling. Arbitrary objects will no longer be allowed to be loaded via this mode unless they are explicitly allowlisted by the user via `torch.serialization.add_safe_globals`. We recommend you start setting `weights_only=True` for any use case where you don't have full control of the loaded file. Please open an issue on GitHub for any issues related to this experimental feature.
coords_mat=Storch.cpu().detach().numpy()

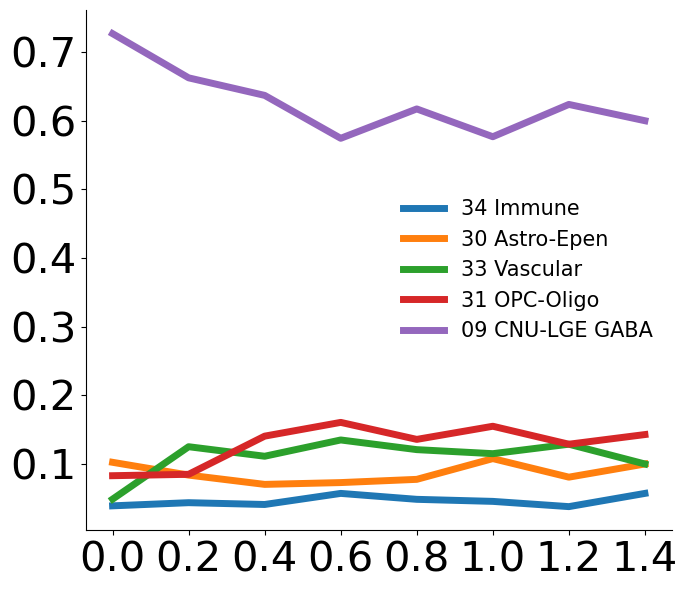

Plot cell type vs isodepth
Needed: a dataframe of size N x C, where rows are spatial locations and columns are cell types
import plot_cell_types
cell_type_df=pd.read_csv('striatum_1058/cell_type_df.csv',index_col=0)
# PLOTTING PARAMETERS
num_bins=15
num_cts=5 # number of cell types to show
figsize=(7,6) # length x width of figure
plot_cell_types.plot_ct_vs_isodepth(cell_type_df,expert_ind,gastonmix_labels,isodepth,num_bins=num_bins,num_cts=num_cts,
figsize=figsize)
Gene expression vs isodepth
Do Poisson regression for all genes (with large enough UMIs)
import gene_fitting
reload(gene_fitting)
# PARAMETERS FOR FITTING INDIVIDUAL GENES
# cell_type_df=None # use None if you do not need cell type-specific analysis
num_cts=5 # number of cell types to compute cell type-specific fits
t=0.1 # set slope=0 if LLR p-value > 0.1
q=0.2 # only fit genes whose UMI count is in top q percentile; alternatively can set umi_threshold directly
num_bins=7 # number of bins when plotting
pw_fit_dict, binning_output,ct_list=gene_fitting.perform_regressions_and_binning(counts_mat, expert_ind,gastonmix_labels, isodepth, gene_labels,
cell_type_df=cell_type_df,num_cts=num_cts,t=t,q=q,num_bins=7)
Get genes with large slopes
q=0.95
# gradient genes over all spots
cont_genes_layer=gene_fitting.get_cont_genes(pw_fit_dict, binning_output,q=q)
# cell type-specific gradient genes
# cont_genes_layer_ct=gene_fitting.get_cont_genes(pw_fit_dict, binning_output,q=q,ct_attributable=True,domain_cts={0:ct_list})
cont_genes_layer
defaultdict(list,
{'Rxrg': [0],
'Ramp3': [0],
'Gpr101': [0],
'Tcerg1l': [0],
'Myo3b': [0],
'Igfbp4': [0],
'Stxbp6': [0],
'Kctd8': [0],
'Dchs2': [0],
'Gpr26': [0],
'Gpr139': [0],
'Crym': [0],
'Dlk1': [0],
'Itga9': [0],
'Atp6v1c2': [0],
'Cckbr': [0],
'Lypd6b': [0],
'Cbln4': [0],
'St6galnac5': [0],
'Adam12': [0],
'Npy2r': [0],
'Meox2': [0],
'Col6a1': [0],
'Cpne9': [0],
'P2ry1': [0],
'Pde1a': [0],
'Pde11a': [0],
'Sfrp1': [0],
'Pkp2': [0],
'Adamts16': [0],
'Fzd5': [0],
'Pdyn': [0],
'Man1a': [0],
'Rprm': [0],
'Baiap3': [0],
'Calb1': [0],
'Synpr': [0],
'Coch': [0],
'Trpc6': [0],
'Gpx3': [0],
'Syt10': [0],
'Plcxd3': [0],
'Cnr1': [0],
'Id4': [0],
'Robo3': [0],
'Matn2': [0]})
cont_genes_layer_ct
{'Rxrg': [(0, '34 Immune'),
(0, '30 Astro-Epen'),
(0, '33 Vascular'),
(0, '31 OPC-Oligo'),
(0, '09 CNU-LGE GABA')],
'Ramp3': [(0, '34 Immune'),
(0, '33 Vascular'),
(0, '31 OPC-Oligo'),
(0, '09 CNU-LGE GABA')],
'Gpr101': [(0, '30 Astro-Epen'), (0, '09 CNU-LGE GABA')],
'Tcerg1l': [(0, '34 Immune'), (0, '31 OPC-Oligo'), (0, '09 CNU-LGE GABA')],
'Myo3b': [(0, '31 OPC-Oligo'), (0, '09 CNU-LGE GABA')],
'Igfbp4': [(0, '30 Astro-Epen'), (0, '31 OPC-Oligo'), (0, '09 CNU-LGE GABA')],
'Stxbp6': [(0, '30 Astro-Epen'), (0, '09 CNU-LGE GABA')],
'Kctd8': [(0, '34 Immune'), (0, '31 OPC-Oligo'), (0, '09 CNU-LGE GABA')],
'Dchs2': [(0, '09 CNU-LGE GABA')],
'Gpr26': [(0, '30 Astro-Epen'), (0, '33 Vascular'), (0, '09 CNU-LGE GABA')],
'Gpr139': [(0, '30 Astro-Epen'), (0, '31 OPC-Oligo'), (0, '09 CNU-LGE GABA')],
'Crym': [(0, '34 Immune'),
(0, '30 Astro-Epen'),
(0, '33 Vascular'),
(0, '31 OPC-Oligo'),
(0, '09 CNU-LGE GABA')],
'Dlk1': [(0, '34 Immune'),
(0, '33 Vascular'),
(0, '31 OPC-Oligo'),
(0, '09 CNU-LGE GABA')],
'Itga9': [(0, '09 CNU-LGE GABA')],
'Atp6v1c2': [(0, '09 CNU-LGE GABA')],
'Cckbr': [(0, '30 Astro-Epen'), (0, '09 CNU-LGE GABA')],
'Lypd6b': [(0, '30 Astro-Epen'), (0, '33 Vascular'), (0, '09 CNU-LGE GABA')],
'Cbln4': [(0, '09 CNU-LGE GABA')],
'St6galnac5': [(0, '31 OPC-Oligo'), (0, '09 CNU-LGE GABA')],
'Adam12': [(0, '09 CNU-LGE GABA')],
'Npy2r': [(0, '30 Astro-Epen'), (0, '33 Vascular'), (0, '09 CNU-LGE GABA')],
'Meox2': [(0, '31 OPC-Oligo'), (0, '09 CNU-LGE GABA')],
'Col6a1': [(0, '34 Immune'),
(0, '30 Astro-Epen'),
(0, '33 Vascular'),
(0, '31 OPC-Oligo'),
(0, '09 CNU-LGE GABA')],
'Cpne9': [(0, '34 Immune'),
(0, '33 Vascular'),
(0, '31 OPC-Oligo'),
(0, '09 CNU-LGE GABA')],
'P2ry1': [(0, '34 Immune'), (0, '09 CNU-LGE GABA')],
'Pde1a': [(0, '34 Immune'),
(0, '30 Astro-Epen'),
(0, '31 OPC-Oligo'),
(0, '09 CNU-LGE GABA')],
'Pde11a': [(0, '09 CNU-LGE GABA')],
'Sfrp1': [(0, '30 Astro-Epen'), (0, '09 CNU-LGE GABA')],
'Pkp2': [(0, '34 Immune'), (0, '09 CNU-LGE GABA')],
'Adamts16': [(0, '31 OPC-Oligo'), (0, '09 CNU-LGE GABA')],
'Fzd5': [(0, '30 Astro-Epen'), (0, '09 CNU-LGE GABA')],
'Pdyn': [(0, '34 Immune'),
(0, '30 Astro-Epen'),
(0, '31 OPC-Oligo'),
(0, '09 CNU-LGE GABA')],
'Man1a': [(0, '30 Astro-Epen'), (0, '31 OPC-Oligo'), (0, '09 CNU-LGE GABA')],
'Rprm': [(0, '34 Immune'), (0, '09 CNU-LGE GABA')],
'Baiap3': [(0, '30 Astro-Epen'), (0, '31 OPC-Oligo'), (0, '09 CNU-LGE GABA')],
'Calb1': [(0, '30 Astro-Epen'),
(0, '33 Vascular'),
(0, '31 OPC-Oligo'),
(0, '09 CNU-LGE GABA')],
'Synpr': [(0, '34 Immune'), (0, '33 Vascular'), (0, '09 CNU-LGE GABA')],
'Coch': [(0, '34 Immune'),
(0, '30 Astro-Epen'),
(0, '33 Vascular'),
(0, '31 OPC-Oligo'),
(0, '09 CNU-LGE GABA')],
'Trpc6': [(0, '34 Immune'),
(0, '33 Vascular'),
(0, '31 OPC-Oligo'),
(0, '09 CNU-LGE GABA')],
'Gpx3': [(0, '33 Vascular'), (0, '31 OPC-Oligo')],
'Syt10': [(0, '34 Immune'), (0, '31 OPC-Oligo'), (0, '09 CNU-LGE GABA')],
'Plcxd3': [(0, '30 Astro-Epen'), (0, '31 OPC-Oligo'), (0, '09 CNU-LGE GABA')],
'Cnr1': [(0, '34 Immune'),
(0, '30 Astro-Epen'),
(0, '33 Vascular'),
(0, '31 OPC-Oligo'),
(0, '09 CNU-LGE GABA')],
'Id4': [(0, '34 Immune'), (0, '09 CNU-LGE GABA')],
'Robo3': [(0, '33 Vascular'), (0, '09 CNU-LGE GABA')],
'Matn2': [(0, '34 Immune'), (0, '30 Astro-Epen'), (0, '09 CNU-LGE GABA')]}
Plot individual gene
Plot isodepth vs expression
import plot_genes
reload(plot_genes)
gene_name='Cnr1'
offset=10**6 # for logCPM; use smaller number for eg CP10K
plot_genes.plot_gene_pwlinear(gene_name, pw_fit_dict, expert_ind, gastonmix_labels, isodepth,
binning_output, cell_type_list=None, pt_size=50, colors=['C0'],
linear_fit=True, ticksize=15, figsize=(3,2.5), offset=offset, lw=3,
domain_boundary_plotting=True)
Plot raw gene expression
gene_name='Cnr1'
offset=10**6 # for logCPM; use smaller number for eg CP10K
# set min/max of colorbar
vmin=6
vmax=None
# plotting
cmap='Blues' # matplotlib colormap
figsize=(5,5)
plot_genes.plot_gene_raw(gene_name, gene_labels, counts_mat[gastonmix_labels==expert_ind,:],
coords_mat[gastonmix_labels==expert_ind,:],
offset=offset, figsize=figsize, colorbar=True, vmax=vmax, vmin=vmin,
s=2, rotate=None,cmap=cmap)

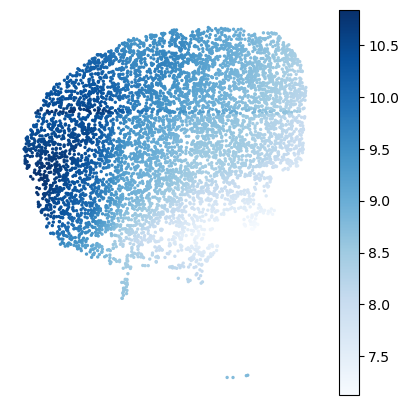

Plot GASTON 2D expression function
gene_name='Cnr1'
offset=10**6 # for logCPM; use smaller number for eg CP10K
# plotting parameters
cmap='Blues' # matplotlib colormap
figsize=(5,5)
plot_genes.plot_gene_function(gene_name, coords_mat[gastonmix_labels==expert_ind,:], pw_fit_dict,
np.zeros(np.sum(gastonmix_labels==expert_ind)),
isodepth, binning_output, figsize=figsize,s=2,cmap=cmap)

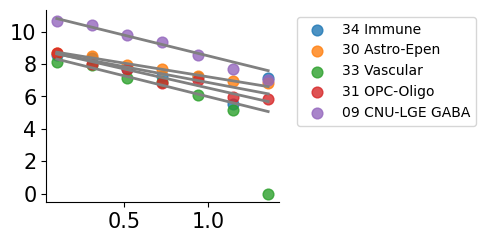

Plot cell type-specific expression functions
gene_name='Cnr1'
offset=10**6 # for logCPM; use smaller number for eg CP10K
# plotting
figsize=(3,2.5)
ct_colors=None # replace with list of colors for plotting each cell type
plot_genes.plot_gene_pwlinear(gene_name, pw_fit_dict, expert_ind, gastonmix_labels, isodepth, binning_output,
cell_type_list=ct_list,ct_colors=ct_colors, spot_threshold=0.01, pt_size=60,
colors=None, linear_fit=True, domain_list=[0],ticksize=15,
figsize=figsize, offset=offset, lw=2, alpha=0.8,show_lgd=True)
